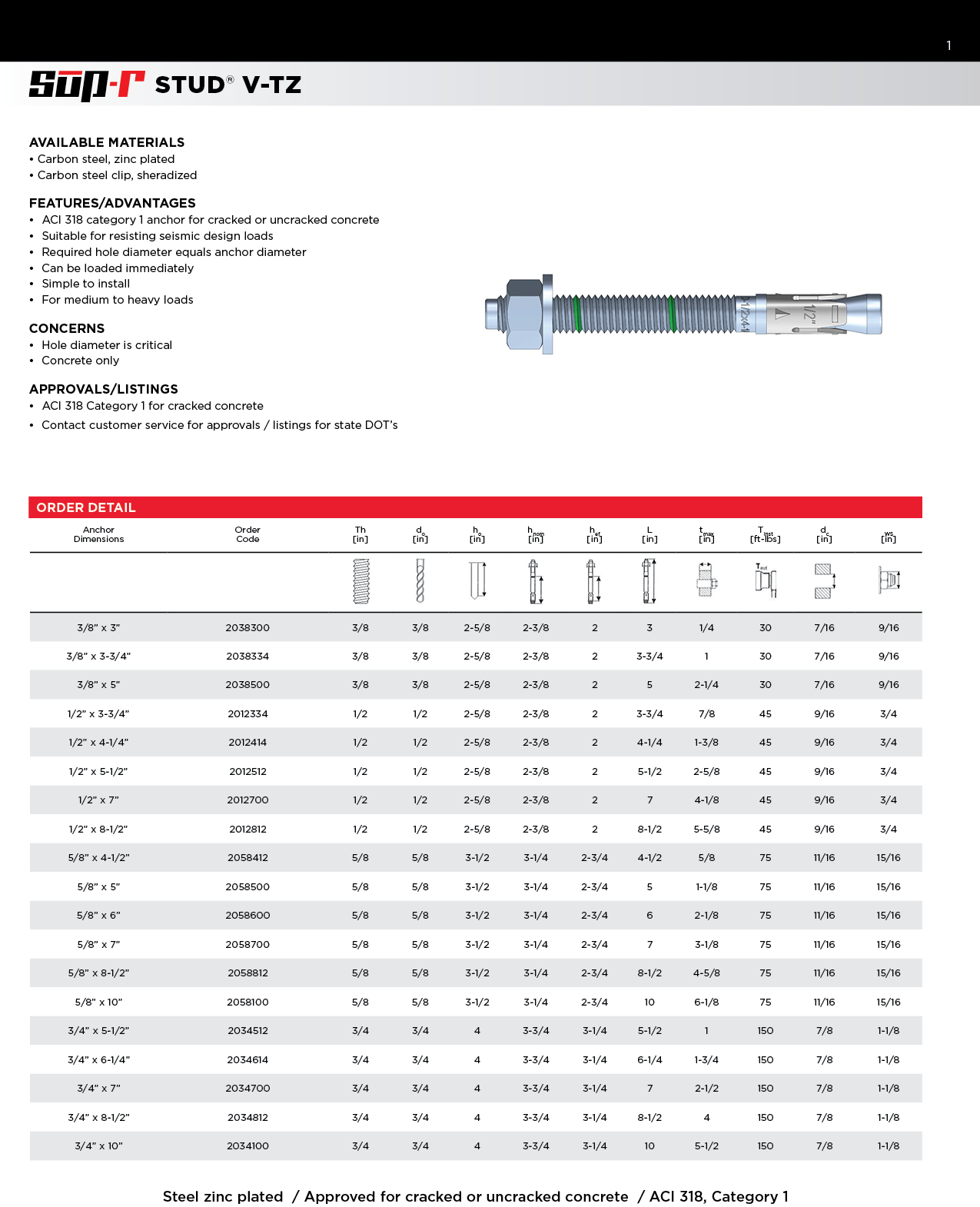

Sup-R Stud® V-TZ

AVAILABLE MATERIALS

• Carbon steel, zinc plated
• Carbon steel clip, sheradized

FEATURES/ADVANTAGES

• ACI 318 category 1 anchor for cracked or uncracked concrete
• Suitable for resisting seismic design loads
• Required hole diameter equals anchor diameter
• Can be loaded immediately
• Simple to install
• For medium to heavy loads

CONCERNS

• Hole diameter is critical
• Concrete only

APPROVALS/LISTINGS

• ACI 318 Category 1 for cracked concrete
• ICC ESR - 4278
• Contact customer service for approvals / listings for state DOT’s

LOAD CALCULATION

• Anchor Design software
