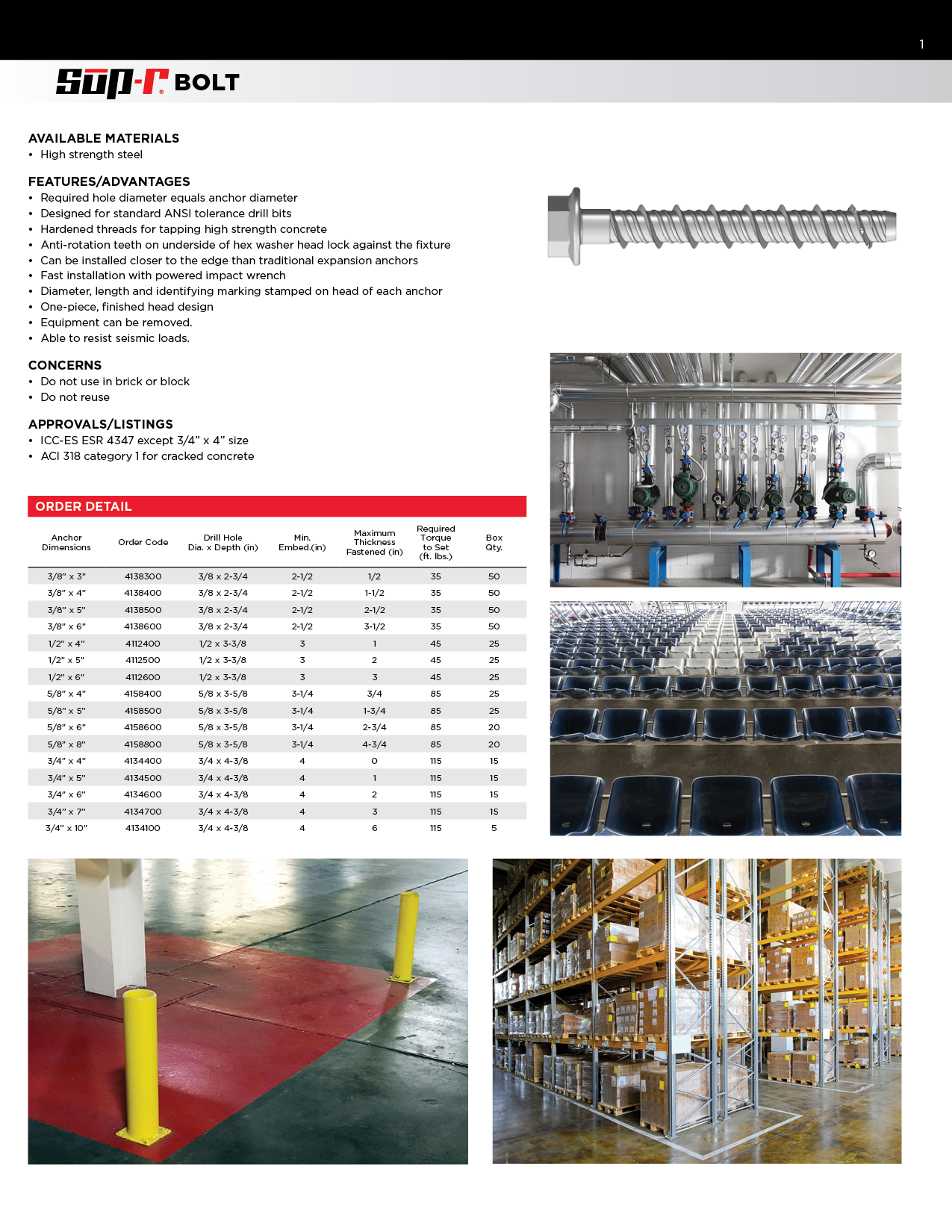

Sup-R Bolt

AVAILABLE MATERIALS

• High strength steel

FEATURES/ADVANTAGES

• Required hole diameter equals anchor diameter
• Designed for standard ANSI tolerance drill bits
• Hardened threads for tapping high strength concrete
• Anti-rotation teeth on underside of hex washer head lock against the fixture
• Can be installed closer to the edge than traditional expansion anchors
• Fast installation with powered impact wrench
• Diameter, length and identifying marking stamped on head of each anchor
• One-piece, finished head design
• Equipment can be removed.
• Able to resist seismic loads.
• Removeable anchor with a low profile head

CONCERNS

• Do not reuse

APPROVALS/LISTINGS

• ICC ESR-4347
• ICC ESR-5359 - Masonry
• ACI 318 category 1 for cracked concrete

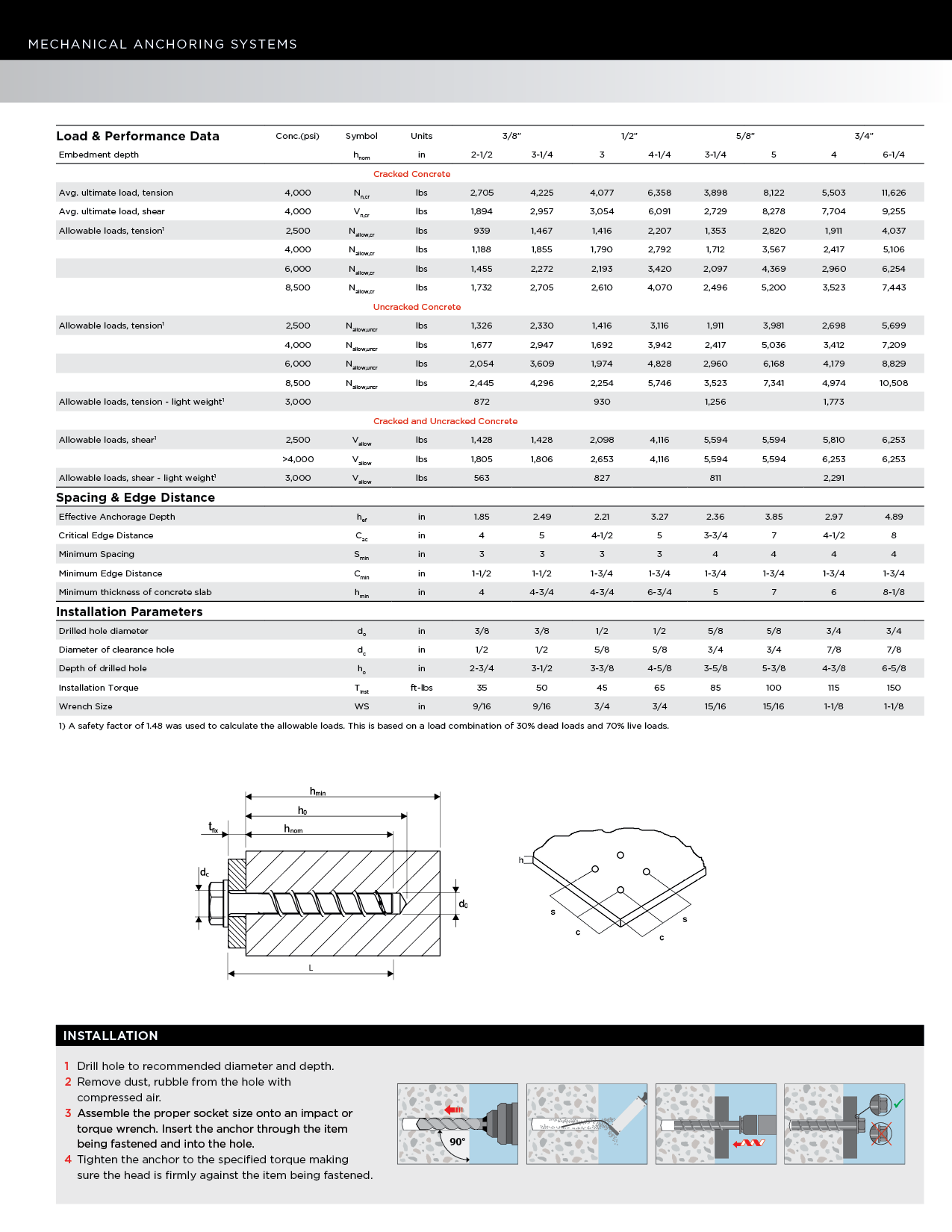

LOAD CALCULATION

• Anchor Design software
