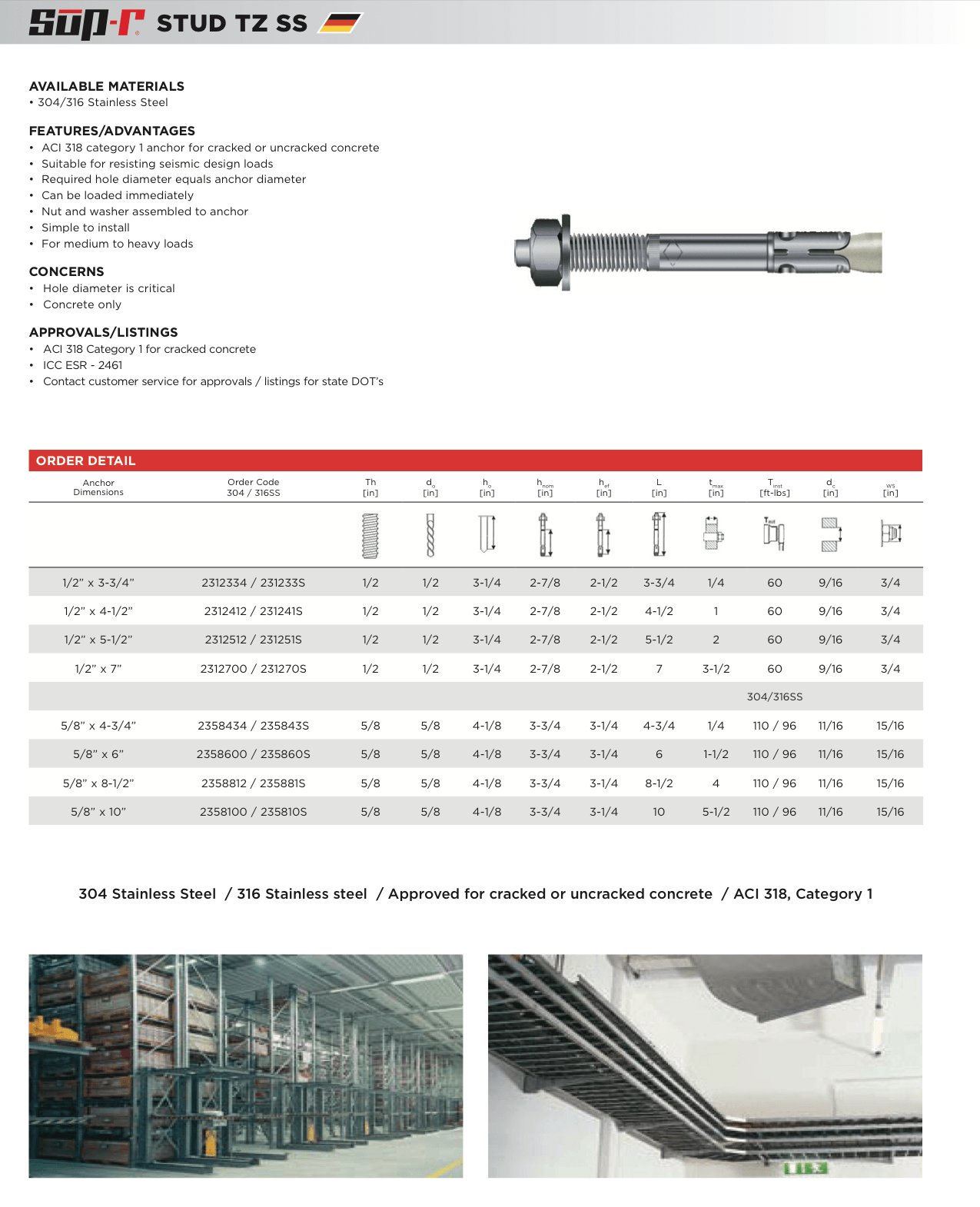

Sup-R Stud® TZ SS

AVAILABLE MATERIALS

• 304/316 Stainless Steel

FEATURES/ADVANTAGES

• ACI 318 category 1 anchor for cracked or uncracked concrete
• Suitable for resisting seismic design loads
• Required hole diameter equals anchor diameter
• Can be loaded immediately
• Nut and washer assembled to anchor
• Simple to install
• For medium to heavy loads

CONCERNS

• Hole diameter is critical
• Concrete only

APPROVALS/LISTINGS

• ACI 318 Category 1 for cracked concrete
• ICC ESR - 2461
• Contact customer service for approvals / listings for state DOT’s

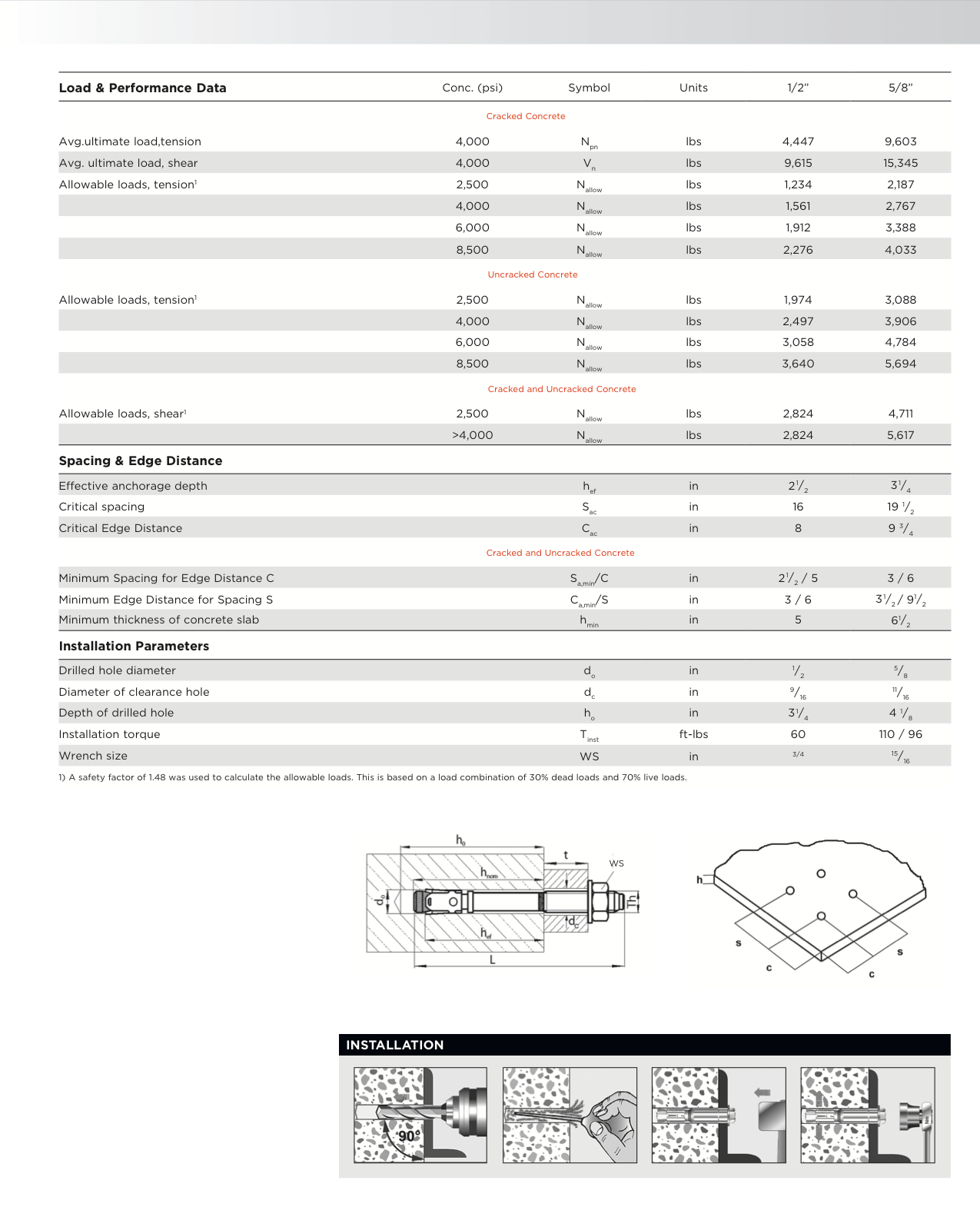

LOAD CALCULATION

• Anchor Design software
